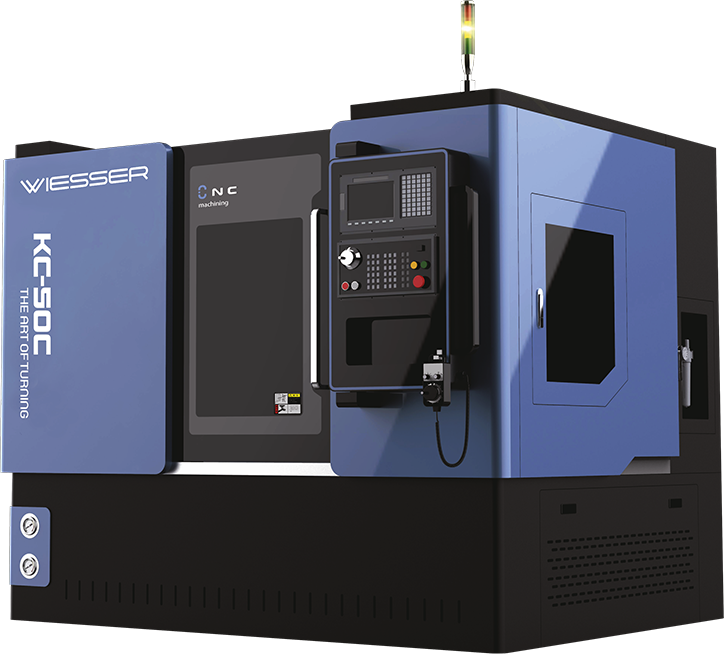

Wiesser KC-50C C-Axis Slant Bed CNC Lathe is a CNC machine from Wiesser in the C-Axis Slant Bed CNC Lathe category. It boosts your production efficiency with high-precision machining and a rigid body. Review the detailed specifications below, and contact SIFIR MAKİNA for a price quote and stock information. Key specifications: Control : FANUC 0i-TF Plus | Swing over bed : 530 mm | Max turning diameter : 340 mm.
HT300 single-piece casting, 35° taper bearing European/Japanese high-precision spindle bearings C3 precision ball screw + P4 roller slide BMT55 driven servo turret, 12 stations (live tooling, bi-directional fast tool change) Automatic central lubrication system Closed chip protection Automatic loading-unloading interface ISO 9001 quality management system FANUC 0i-TF Plus CNC control C axis: precise indexing via pulse-type spindle speed control BMT55 live tool holders: 2 pairs (90° radial / 0° axial) + 6 fixed tool holders 10" hydraulic chuck + foot switch Programmable hydraulic tailstock (MT-4) Renishaw HPMA tool setter arm Chain-type chip conveyor Air-conditioned electrical cabinet, transformer, door interlock Standard tooling kit; operation, programming and maintenance manuals
Control: FANUC 0i-TF Plus Swing over bed: 530 mm Max turning diameter: 340 mm Max cutting length: 420 mm Standard chuck: 10" Spindle type: A2-6 (belt-driven) Spindle bore: 74 mm Bar capacity: 65 mm Max spindle speed: 4000 rpm Main motor power: 15/18.5 kW Main motor torque: 143/210 Nm C axis: Yes (precise indexing on main spindle) Driven turret: BMT55 · 12 stations · Ø330 mm Live tooling: 6000 rpm · 4.5 kW Tool shank size: 25×25 mm Max boring bar diameter: 40 mm X-axis travel: 200 mm Z-axis travel: 500 mm Rapid traverse X/Z: 24/24 m/min Ball screw / guideway X/Z: 40×10 mm (C3) / 35 mm roller (P4) Tailstock taper: MT-4 Tailstock stroke: 100 mm (body 300 mm) Coolant / hydraulic tank: 180 / 35 L Machine size (L×W): 2500×1800 mm Machine weight: 4200 kg
Brand: Wiesser Model: KC-50C Origin: China HS Code: 8458.11.41.00.12
