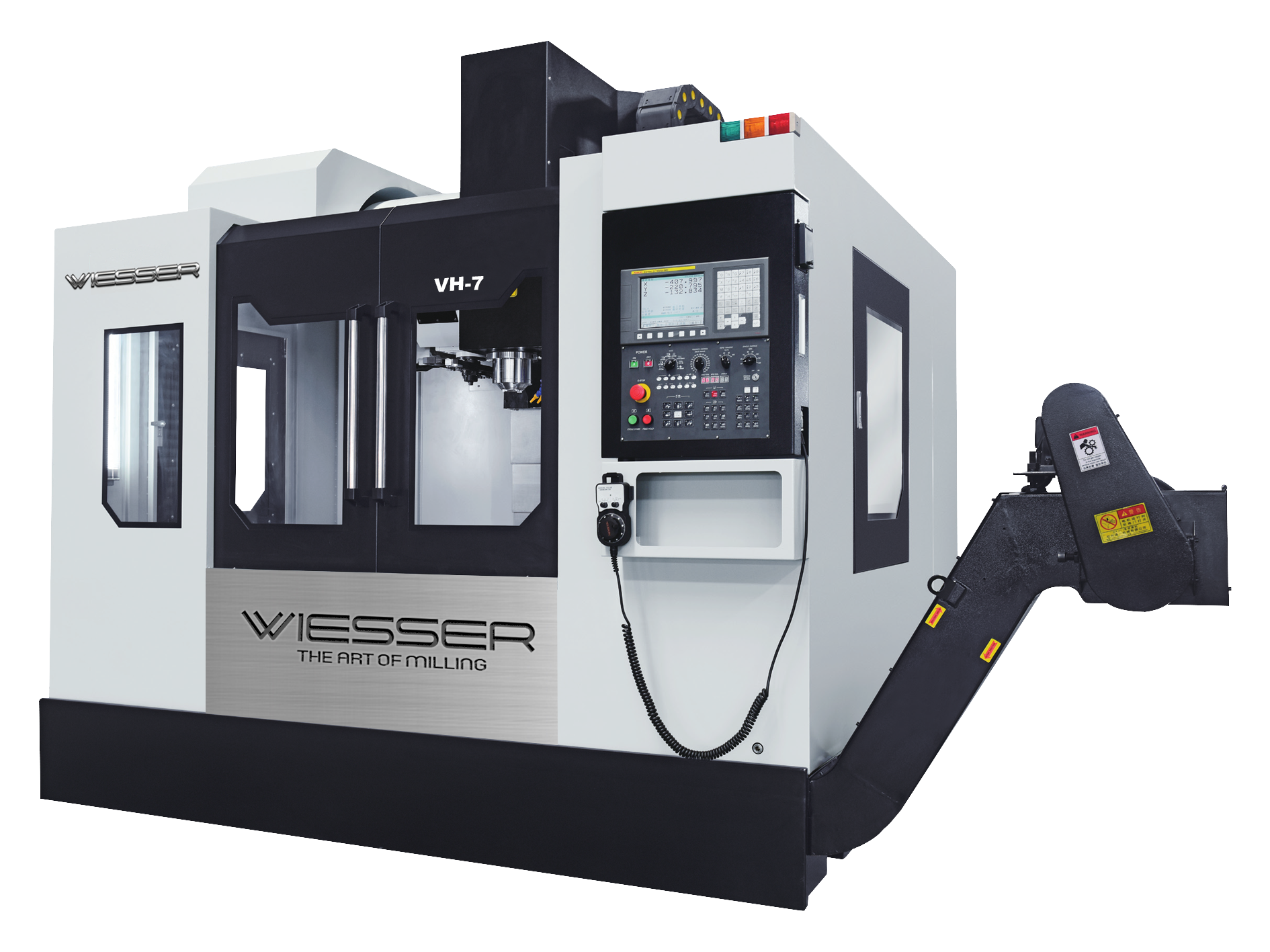

Wiesser VH-7 High Speed Machining Center is a CNC machine from Wiesser in the High Speed Machining Center category. It boosts your production efficiency with high-precision machining and a rigid body. Review the detailed specifications below, and contact SIFIR MAKİNA for a price quote and stock information.
Meehanite casting, extra wide base Heat treatment and stress relieving Wide span column + hand scraping High precision linear guideways on 3 axes Rigid Guide Drilling Electrical panel ventilation system Fully enclosed cabinet Portable hand crank Compressed air coolant system Water-based tool cooling system Water gun Air gun Central lubrication unit 3-color warning light LED worklight Machine mounting base set Toolbox and Sets CE Equipment Transformer User and Maintenance Guides
Table dimensions: 900 x 450 (mm) T-slot dimensions: 3 x 100 x 18 (mm) Table load capacity: 400 (kg) X Axis Travel Amount: 750 (mm) Y Axis Travel Amount: 450 (mm) Z Axis Travel: 500 (mm) Distance Between Spindle Nose and Table: 120 ~ 620 (mm) Distance between spindle and column: 530 (mm) Spindle Motor Power: 5.5/7.5 (kW) Spindle taper: BBT40 Max. Spindle speed: 12.000 (rpm) / Direct Drive Guideway type (X/Y/Z): Linear Roller Guideway Guideway dimensions x Block count: X30×2 / Y30×2 / Z35×2 (mm) Rapid traverse X*Y*Z: 48*48*48 (m/min) Positioning accuracy: ±0.005/300 (mm) Repeatability: ±0.002/300 (mm) Approximate Gross Machine Weight: 5.000 (kg) Air supply capacity: 6-8 (kg/cm²) Power supply capacity: 15 (KVA) Machine dimensions (WxDxH): 2450 x 1900 x 2350 (mm)
Brand: Wiesser Model: VH-7 Origin: China HS Code: 8457.10.90.00.11
