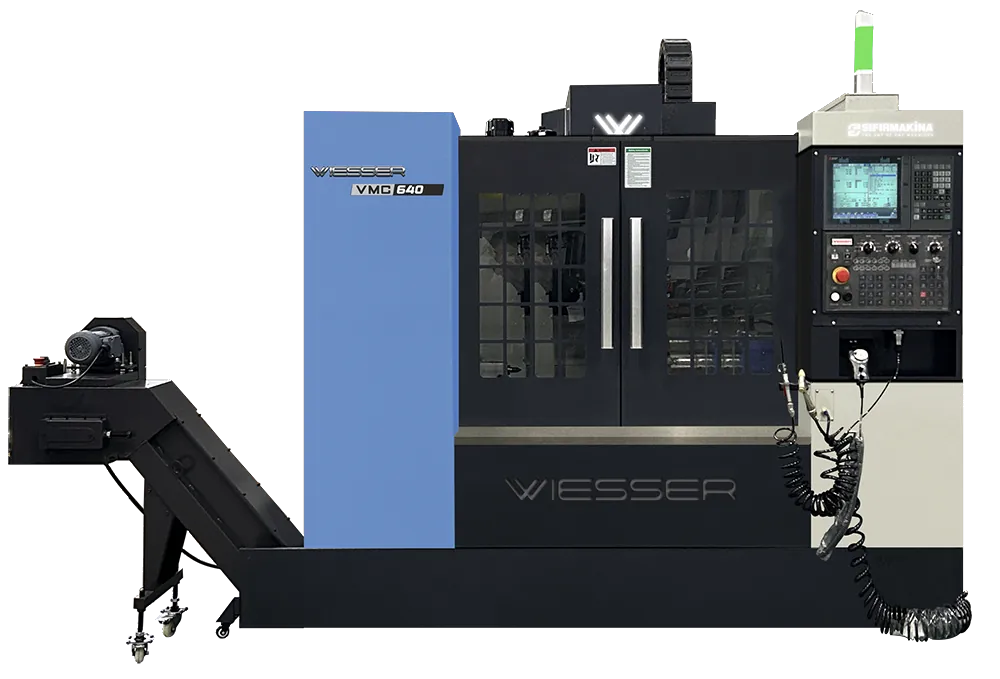

Wiesser VMC640 CNC Vertical Machining Center is a CNC machine from Wiesser in the CNC Vertical Machining Center category. It boosts your production efficiency with high-precision machining and a rigid body. Review the detailed specifications below, and contact SIFIR MAKİNA for a price quote and stock information.
OKADA Brand Spindle and Magazine Excellent damping properties with meehannite cast iron housing technology Better surface quality with High Speed and High Precision features Robust and wide frame structure with long-lasting rigidity Rigid Tapping (Rigid Guide Drilling) 16-station turret-type ATC HIWIN brand double-row ball linear slide ways Spindle Cooling System Helical chip conveyor Electrical cabinet cooling system Fully enclosed casing Portable hand crank Coolant system with compressed air Coolant system with bore oil Bore oil quench system Air gun Central lubrication unit Color indicator lamp showing machine operating status LED interior lighting lamp Machine mounting base set Tool box and accessories CE Equipment Transformer User and Maintenance Manuals
Machine table dimensions: 1,000 × 360 (mm) T Channel dimensions : 16 x 3 x 115 (mm) Table loading capacity : 300 (kg) X-axis travel distance: 650 (mm) Y-axis movement amount: 400 (mm) Z-axis travel distance: 500 (mm) Distance between spindle axis and table : 100 ~ 600 (mm) Distance from spindle center to column : 440 (mm) Spindle motor power : 7,5 (kW) Spindle taper: BBT-40 Max. spindle speed: 12,000 (rpm) Spindle - Motor drive type : Direct Motor (Direct Drive) Automatic magazine type: Arm (Arm Type) Magazine station count: 16 (units) Max. tool diameter Standard / Side pots empty: 78 / 120 (mm) Max. tool length: 250 (mm) Max. tool weight: 7 (kg) Tool change time (T-T): 2 (s) Axis motor powers X*Y*Z: 2*2*2 (kW) X-axis slide type: Linear Slide (35mm) Y-axis slide type: Linear Slide (35mm) Z-axis slide type: Linear Slide (35mm) Threaded shaft diameter XYZ / thread pitch: 323232 (mm) / 12 (mm) Rapid traverse X*Y*Z: 36*36*36 (m/min) Cutting feed X*Y*Z: 15 (m/min) Positioning accuracy: ±0.008 (mm) / 300 (mm) Repeatability: ±0.005 (mm) Machine outer casing dimensions (W×D×H): 3,620×2,570×2,810 (mm) Approximate machine weight: 3,500 (kg) (varies depending on options)
Brand: Wiesser Model: VMC640 Origin: China HS Code: 8457.10.90.00.11
